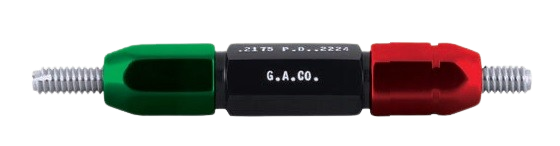

Reversible Design Unified National Extra Fine (UNEF) Working Thread Plug Gages
Thread Gages
Item # |
Item Name |
Thread Size |
Thread Type |
Unified Pitch Diameter (UPD) |
X Tolerance Go =+/No Go =- |
X Lead Tolerance |
Type |
Handle Number |
List Price |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| C-REV 12-32 UNEF GO /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.1957 Inch, 12-32 UNEF GO Reversible Thread Plug Member | Thread Size N/A 12-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.1957 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Go | Handle Number N/A 3W | $71.00 |
Add To Cart
Request Quote |
| C-REV 12-32 UNEF NG 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.1998 Inch, 12-32 UNEF 2B NOT GO Reversible Thread Plug Member | Thread Size N/A 12-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.1998 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 3W | $71.00 |
Add To Cart
Request Quote |
| C-REV 12-32 UNEF NG 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.1988 Inch, 12-32 UNEF 3B NOT GO Reversible Thread Plug Member | Thread Size N/A 12-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.1988 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 3W | $71.00 |
Add To Cart
Request Quote |
| C-REV 12-32 UNEF DE 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.1957 to 0.1998 Inch, 12-32 UNEF 2B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 12-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.1957 to 0.1998 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 3W | $159.50 |
Add To Cart
Request Quote |
| C-REV 12-32 UNEF DE 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.1957 to 0.1988 Inch, 12-32 UNEF 3B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 12-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.1957 to 0.1988 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 3W | $159.50 |
Add To Cart
Request Quote |
| C-REV 1/4-32 UNEF GO /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2297 Inch, 1/4-32 UNEF GO Reversible Thread Plug Member | Thread Size N/A 1/4-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2297 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Go | Handle Number N/A 3W | $77.00 |
Add To Cart
Request Quote |
| C-REV 1/4-32 UNEF NG 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2339 Inch, 1/4-32 UNEF 2B NOT GO Reversible Thread Plug Member | Thread Size N/A 1/4-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2339 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 3W | $77.00 |
Add To Cart
Request Quote |
| C-REV 1/4-32 UNEF NG 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2328 Inch, 1/4-32 UNEF 3B NOT GO Reversible Thread Plug Member | Thread Size N/A 1/4-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2328 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 3W | $77.00 |
Add To Cart
Request Quote |
| C-REV 1/4-32 UNEF DE 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2297 to 0.2339 Inch, 1/4-32 UNEF 2B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 1/4-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2297 to 0.2339 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 3W | $171.50 |
Add To Cart
Request Quote |
| C-REV 1/4-32 UNEF DE 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2297 to 0.2328 Inch, 1/4-32 UNEF 3B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 1/4-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2297 to 0.2328 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 3W | $171.50 |
Add To Cart
Request Quote |
| C-REV 5/16-32 UNEF GO /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2922 Inch, 5/16-32 UNEF GO Reversible Thread Plug Member | Thread Size N/A 5/16-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2922 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Go | Handle Number N/A 4W | $77.00 |
Add To Cart
Request Quote |
| C-REV 5/16-32 UNEF NG 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2964 Inch, 5/16-32 UNEF 2B NOT GO Reversible Thread Plug Member | Thread Size N/A 5/16-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2964 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 4W | $77.00 |
Add To Cart
Request Quote |
| C-REV 5/16-32 UNEF NG 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2953 Inch, 5/16-32 UNEF 3B NOT GO Reversible Thread Plug Member | Thread Size N/A 5/16-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2953 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 4W | $77.00 |
Add To Cart
Request Quote |
| C-REV 5/16-32 UNEF DE 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2922 to 0.2964 Inch, 5/16-32 UNEF 2B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 5/16-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2922 to 0.2964 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 4W | $172.00 |
Add To Cart
Request Quote |
| C-REV 5/16-32 UNEF DE 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.2922 to 0.2953 Inch, 5/16-32 UNEF 3B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 5/16-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.2922 to 0.2953 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 4W | $172.00 |
Add To Cart
Request Quote |
| C-REV 3/8-32 UNEF GO /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.3547 Inch, 3/8-32 UNEF GO Reversible Thread Plug Member | Thread Size N/A 3/8-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.3547 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Go | Handle Number N/A 4W | $86.00 |
Add To Cart
Request Quote |
| C-REV 3/8-32 UNEF NG 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.3591 Inch, 3/8-32 UNEF 2B NOT GO Reversible Thread Plug Member | Thread Size N/A 3/8-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.3591 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 4W | $86.00 |
Add To Cart
Request Quote |
| C-REV 3/8-32 UNEF NG 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.3580 Inch, 3/8-32 UNEF 3B NOT GO Reversible Thread Plug Member | Thread Size N/A 3/8-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.3580 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 4W | $86.00 |
Add To Cart
Request Quote |
| C-REV 3/8-32 UNEF DE 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.3547 to 0.3591 Inch, 3/8-32 UNEF 2B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 3/8-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.3547 to 0.3591 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 4W | $190.00 |
Add To Cart
Request Quote |
| C-REV 3/8-32 UNEF DE 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.3547 to 0.3580 Inch, 3/8-32 UNEF 3B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 3/8-32 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.3547 to 0.3580 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 4W | $190.00 |
Add To Cart
Request Quote |
| C-REV 7/16-28 UNEF GO /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.4143 Inch, 7/16-28 UNEF GO Reversible Thread Plug Member | Thread Size N/A 7/16-28 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.4143 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Go | Handle Number N/A 5W | $89.00 |
Add To Cart
Request Quote |
| C-REV 7/16-28 UNEF NG 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.4189 Inch, 7/16-28 UNEF 2B NOT GO Reversible Thread Plug Member | Thread Size N/A 7/16-28 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.4189 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 5W | $89.00 |
Add To Cart
Request Quote |
| C-REV 7/16-28 UNEF NG 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.4178 Inch, 7/16-28 UNEF 3B NOT GO Reversible Thread Plug Member | Thread Size N/A 7/16-28 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.4178 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A No Go | Handle Number N/A 5W | $89.00 |
Add To Cart
Request Quote |
| C-REV 7/16-28 UNEF DE 2B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.4143 to 0.4189 Inch, 7/16-28 UNEF 2B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 7/16-28 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.4143 to 0.4189 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 5W | $196.50 |
Add To Cart
Request Quote |
| C-REV 7/16-28 UNEF DE 3B /Asset/Reversible-Design-Unified-National-Extra-Fine--UNEF--Thread-Gages.png | N/A 0.4143 to 0.4178 Inch, 7/16-28 UNEF 3B GO & NOT GO Reversible Thread Plug WH | Thread Size N/A 7/16-28 | Thread Type N/A Unified National Extra Fine (UNEF) | Unified Pitch Diameter (UPD) N/A 0.4143 to 0.4178 Inch | X Tolerance Go =+/No Go =- N/A 0.0003 Inch | X Lead Tolerance N/A 0.0003 Inch | Type N/A Double End (Set) | Handle Number N/A 5W | $196.50 |
Add To Cart
Request Quote |
